DJI AGRAS T100 4-Nozzle Orchard Package

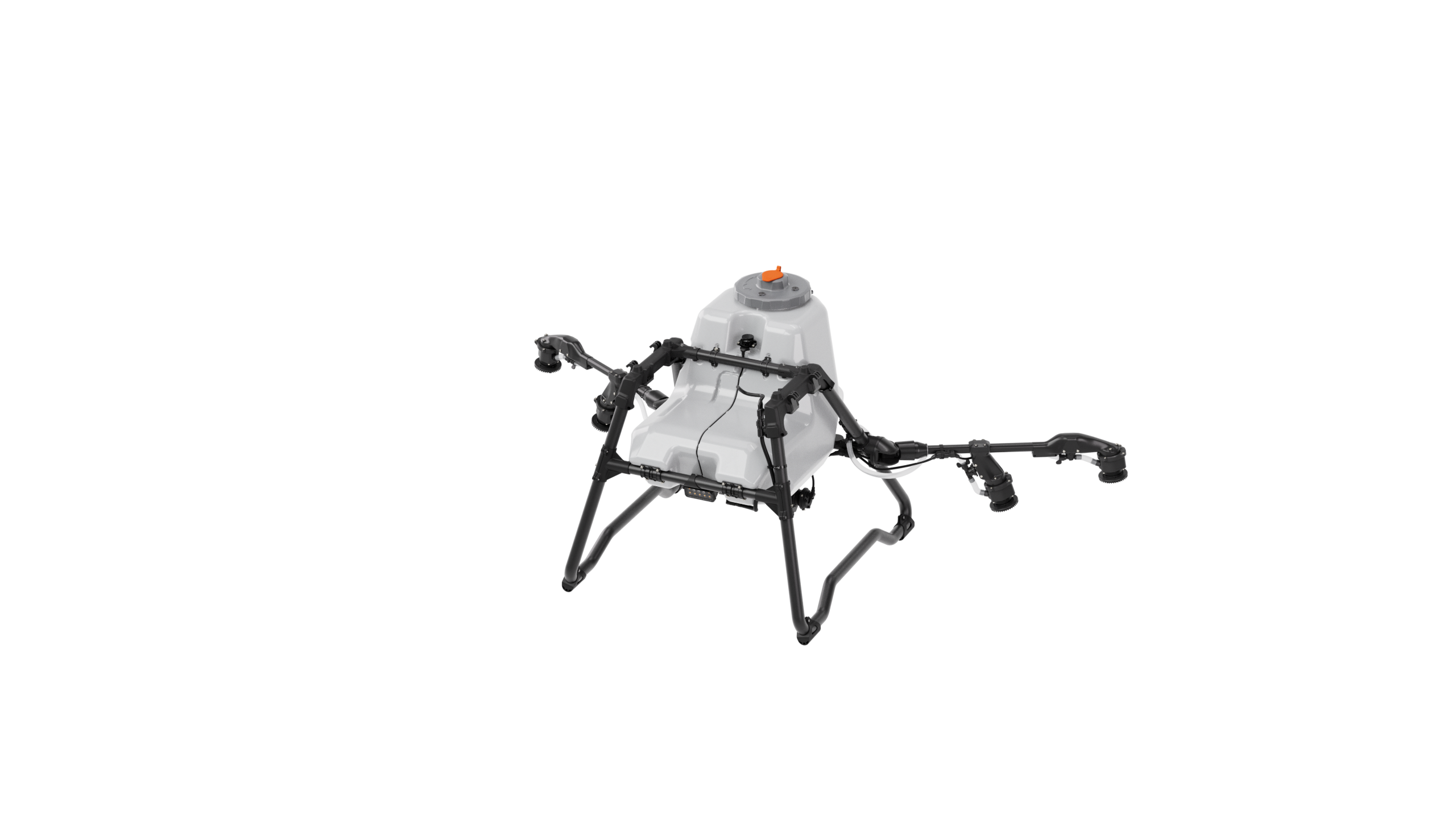

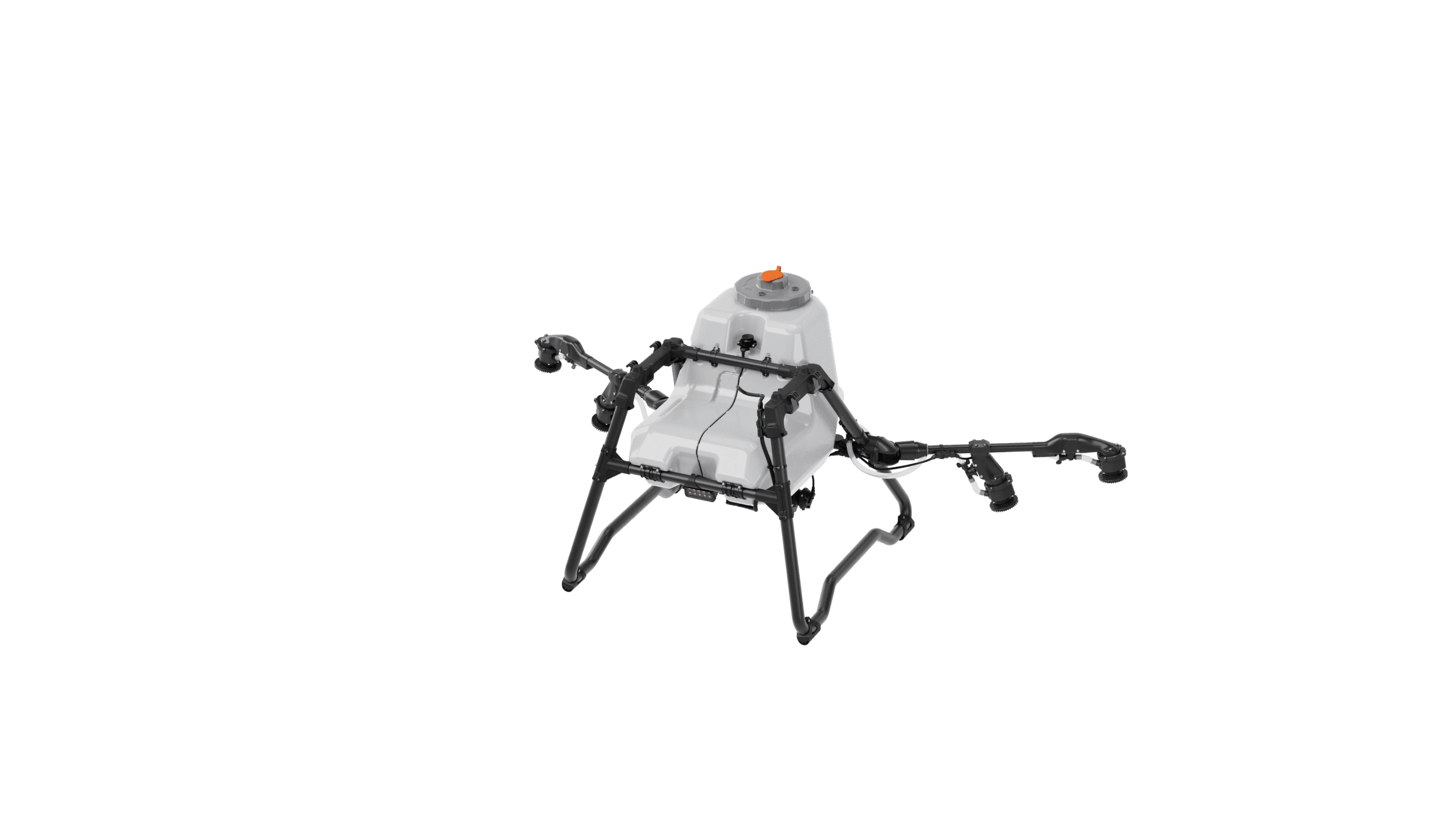

The DJI AGRAS T100 Mist Nozzle Package is the upgrade kit designed to convert the T100 spraying system from the standard two-nozzle setup to an optional four-nozzle configuration, optimized for orchards, trees, and dense canopy operations where finer coverage and penetration matter. DJI lists the mist nozzle option as LX09550SX, and supports 2 standard or 4 optional sprinklers on the T100 spraying system.

Built for finer atomization and canopy-focused coverage

With the mist nozzle option installed, the T100 maintains DJI’s published spray droplet range of 50–500 μm, and DJI lists an effective spray width of 5–13 m (setup and conditions dependent). The four-nozzle configuration also increases nozzle spacing to 1834 mm (four nozzles outermost), helping deliver more uniform distribution across the rear array for orchard style passes.

Throughput, maximize output when timing is tight

DJI specifies the T100 delivery pump system max flow rates as 30 L/min with the standard two nozzles, and 40 L/min with the optional four-nozzle setup, which is highly relevant for orchard and tree crop windows where coverage speed and refill cycles directly impact daily acreage.

What is included

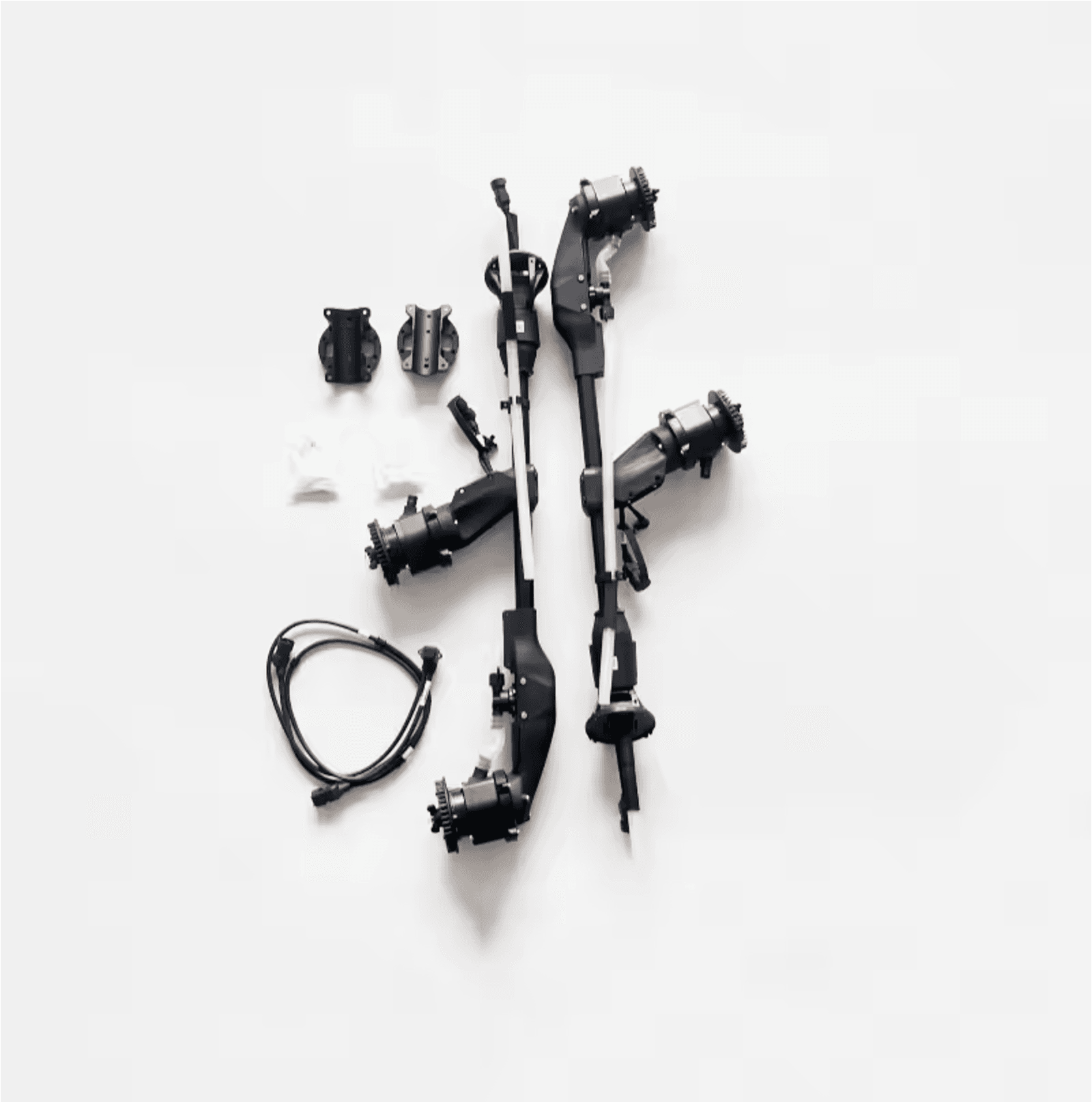

DJI’s official product information for the T100/T70 series mist nozzle package lists core kit components such as a Mist Sprinkler Kit (including one solenoid valve), plus mounting and plumbing, including items like a Spray Lance Bracket, Inner Sprinkler Adapter Cable, and hoses.

Use case fit, orchards and trees

Multiple DJI dealers describe this kit as intended for orchard and precision spraying scenarios, emphasizing the four-nozzle rear array and uniform distribution benefits for canopy style operations.
