DJI Matrice 4 Obstacle Sensing Module

Name: DJI Matrice 4 Obstacle Sensing Module
Brand: DJI
Price: 2129 CAD
Availability: InStock

CAD2,129.00

What's in the box

DJI Matrice 4 Obstacle Sensing Module

Rotating LiDAR and millimeter-wave radar sensing module for Matrice 4 Series and Matrice 4D Series aircraft

H2.5 Hex Key

Installation tool for mounting the obstacle sensing module

H1.5 Hex Key

Installation tool for module setup and adjustment

Adapter Bracket for Matrice 4 Series

Adapter bracket for installing the module on compatible Matrice 4 Series aircraft

x12

Reflective Stickers for DJI Dock

Reflective stickers for supported DJI Dock workflows

DJI Matrice 4D

Dock-compatible enterprise aircraft for mapping, inspection, and autonomous operations

DJI Matrice 4TD

Thermal dock-compatible enterprise aircraft for public safety, inspection, and night operations

DJI Matrice 4E

Enterprise mapping aircraft compatible with Matrice 4 Series workflows

DJI Matrice 4T

Enterprise thermal aircraft compatible with Matrice 4 Series workflows

DJI Dock 3

Autonomous drone dock for Matrice 4D and Matrice 4TD operations

Compatible products

Designed to work seamlessly together.

DJI Matrice 4E Enterprise

View product

DJI Matrice 4D (RC Plus 2)

View product

DJI Matrice 4T Thermal

View product

DJI Matrice 4TD (RC Plus 2)

View product

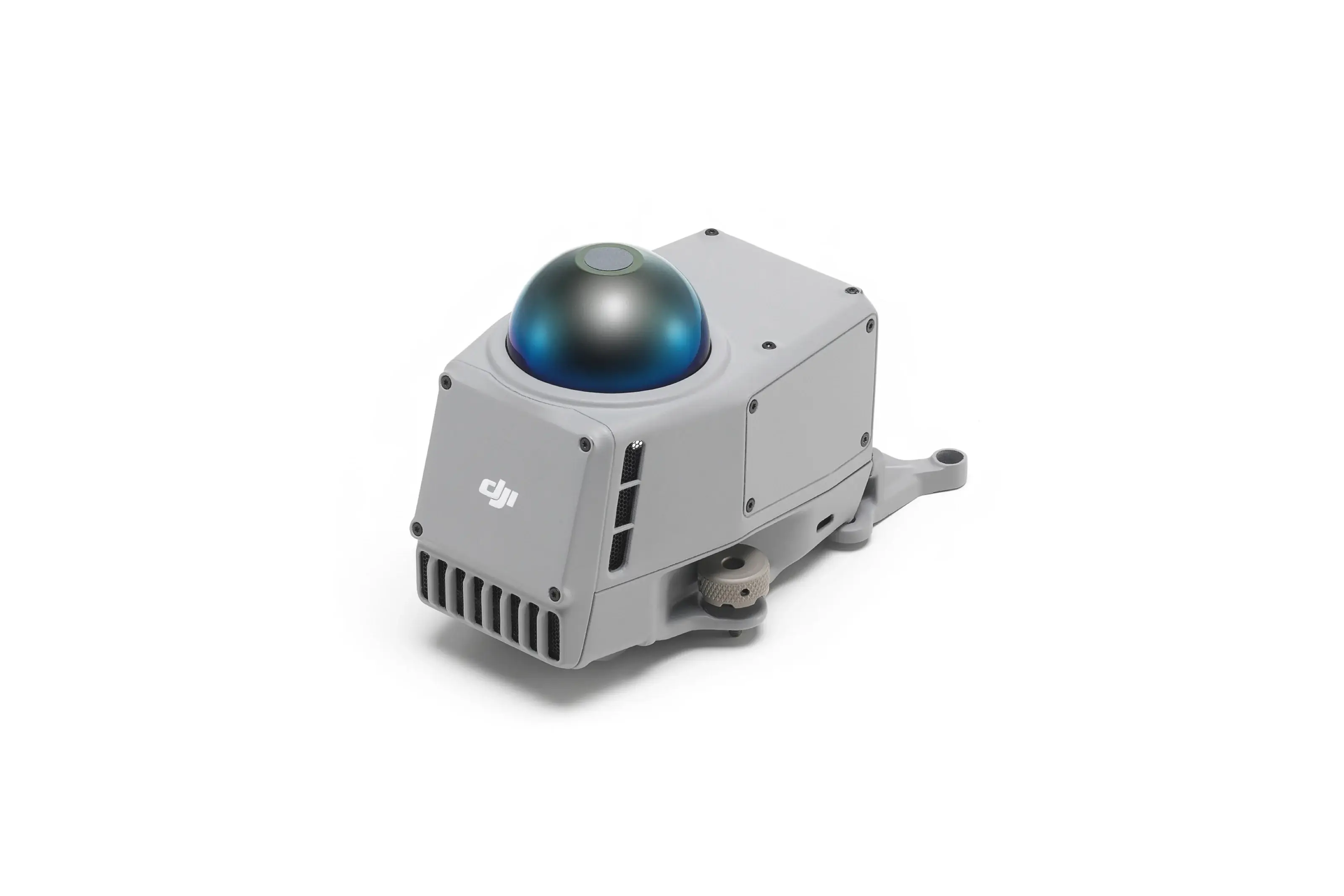

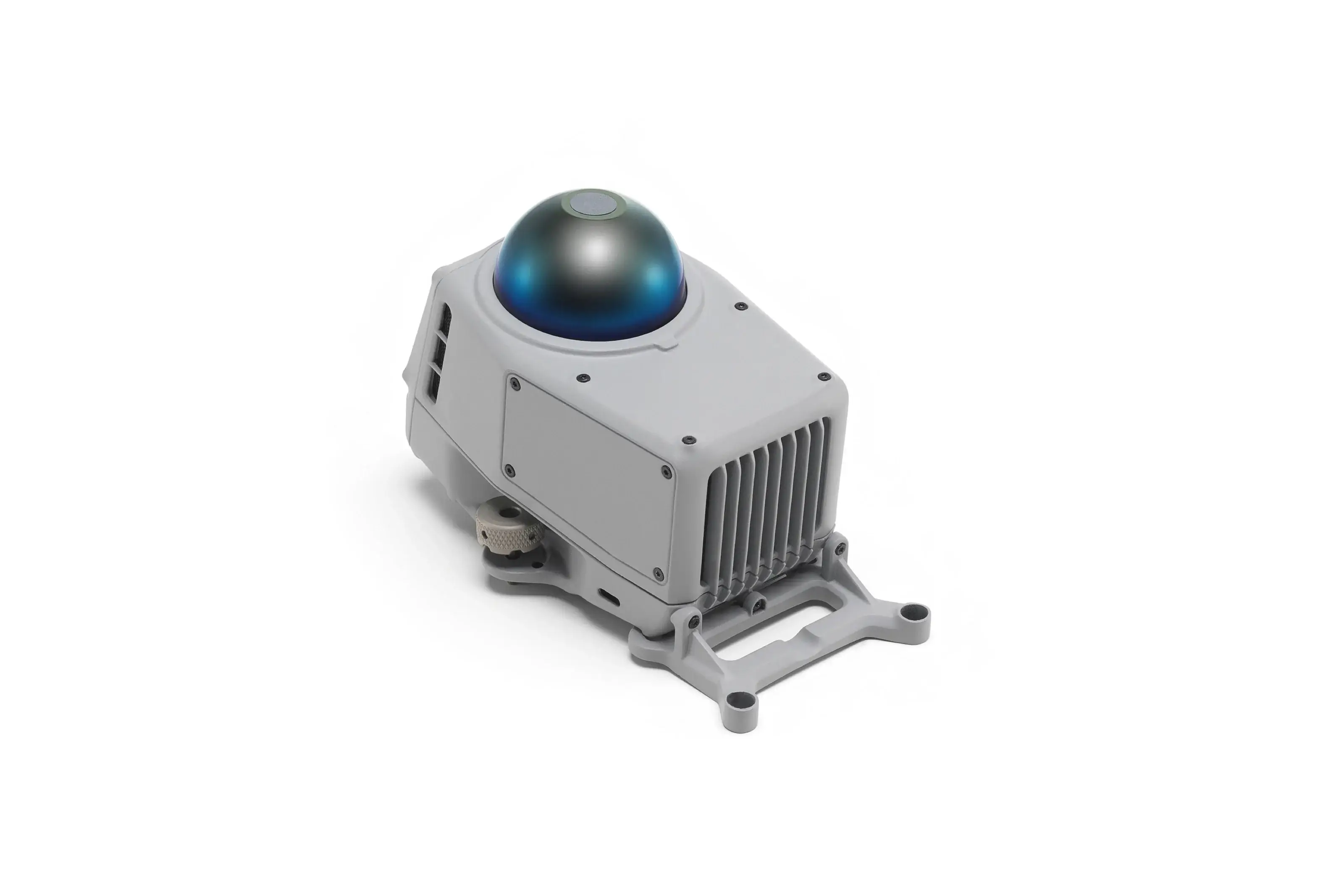

DJI Matrice 4 Obstacle Sensing Module

The DJI Matrice 4 Obstacle Sensing Module is a professional obstacle detection accessory designed to enhance flight safety and environmental awareness for DJI Matrice 4 Series and DJI Matrice 4D Series drones. Built with a combination of rotating LiDAR and millimeter-wave radar, this module helps the aircraft detect complex obstacles more effectively during inspection, patrol, and autonomous drone operations.

For enterprise users working around powerlines, substations, industrial facilities, construction sites, and other cluttered environments, the Matrice 4 Obstacle Sensing Module provides an added layer of sensing performance beyond standard onboard vision systems. It is especially valuable for utility inspection, power grid patrol, emergency response, infrastructure monitoring, and DJI Dock 3 deployment workflows.

Built for Complex Inspection Environments

Thin wires, utility structures, towers, branches, and substation layouts can create challenging flight environments for enterprise drone teams. The DJI Matrice 4 Obstacle Sensing Module integrates rotating LiDAR with millimeter-wave radar to support improved obstacle perception in complex operating areas.

With up to 100 m max detection distance and effective sensing support at flight speeds up to 15 m/s under DJI reference conditions, the module is designed to improve confidence during precision missions where obstacle awareness is critical.

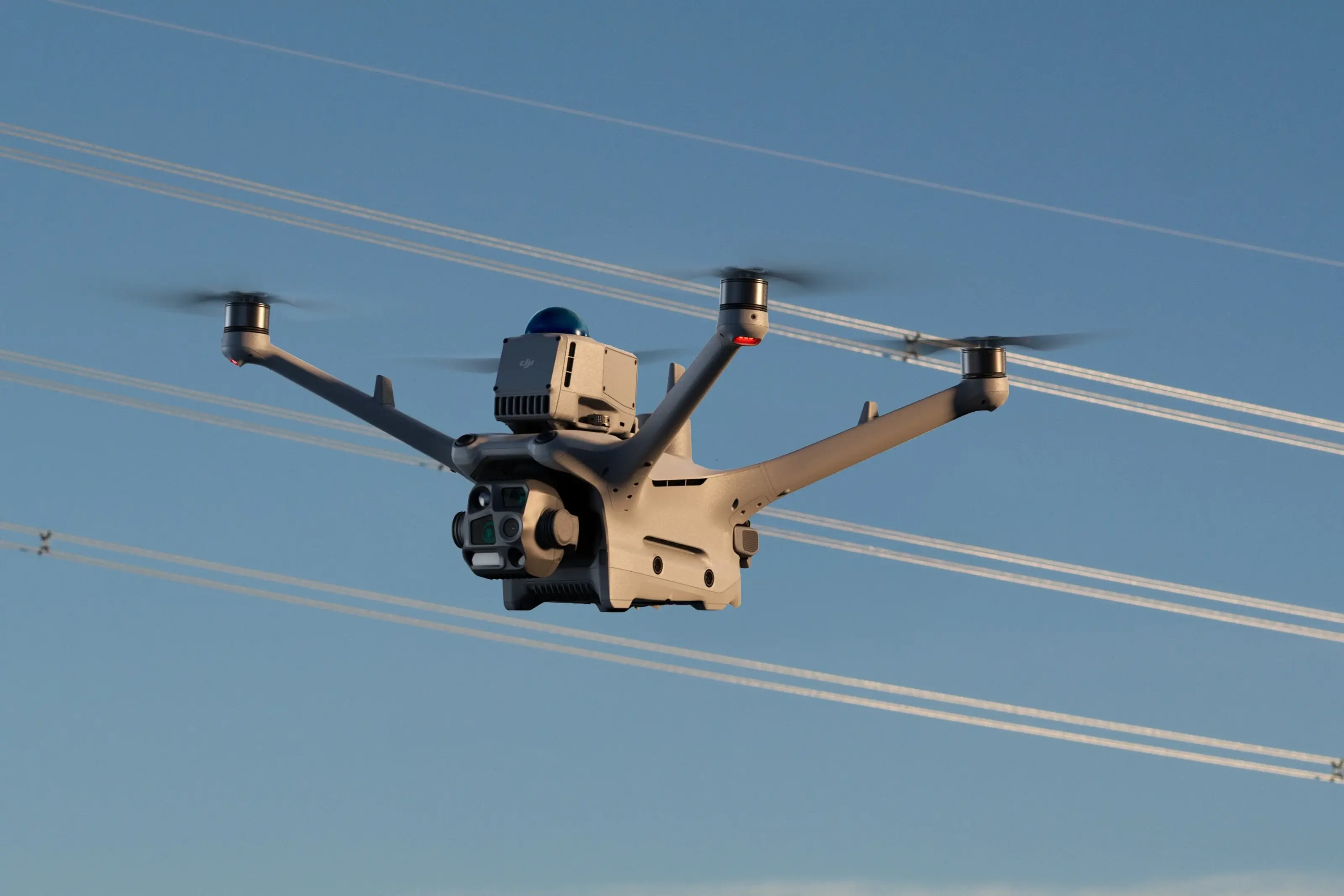

Enhanced Safety for Powerline and Utility Work

The module is well-suited for powerline inspection, distribution network patrol, substation inspection, and utility asset management. Its sensing system helps the aircraft better recognize hard-to-see obstacles, including reference obstacles such as 12 mm steel-core aluminum stranded wire under specified DJI test conditions.

This makes the module a strong upgrade for enterprise teams operating near utility infrastructure, dense industrial structures, and low-light environments where standard visual sensing may be limited.

Designed for DJI Matrice 4 and Matrice 4D Series

The DJI Matrice 4 Obstacle Sensing Module is compatible with DJI Matrice 4D Series and DJI Matrice 4 Series aircraft. It is compact, lightweight, and designed for professional field use, with a 235 g body, IP55 protection rating when used with the Matrice 4D Series, and an operating temperature range of -20° to 50° C.

Ideal Applications

Powerline inspectionSubstation inspectionUtility patrolIndustrial site inspectionInfrastructure inspectionEmergency responsePublic safety operationsConstruction monitoringLow-light inspection workflowsDJI Dock 3 autonomous operationsComplex obstacle environments

Why Choose the DJI Matrice 4 Obstacle Sensing Module?

The DJI Matrice 4 Obstacle Sensing Module gives enterprise drone operators a stronger sensing solution for demanding environments. By combining rotating LiDAR and millimeter-wave radar, it helps improve obstacle awareness, supports safer flight planning, and adds confidence for inspection missions where thin wires, complex structures, and low-light conditions may increase operational risk.

For organizations using Matrice 4 Series or Matrice 4D Series drones in critical inspection and autonomous deployment workflows, this module is an important safety and performance upgrade.

DJI Matrice 4 Obstacle Sensing Module

Built for Complex Inspection Environments

Enhanced Safety for Powerline and Utility Work

Designed for DJI Matrice 4 and Matrice 4D Series

Ideal Applications

Why Choose the DJI Matrice 4 Obstacle Sensing Module?

For organizations using Matrice 4 Series or Matrice 4D Series drones in critical inspection and autonomous deployment workflows, this module is an important safety and performance upgrade.
