Professional smart controller for the XAG P150 Max featuring a high-brightness 7-inch touchscreen, XLink HD transmission and integrated agricultural mission controls.

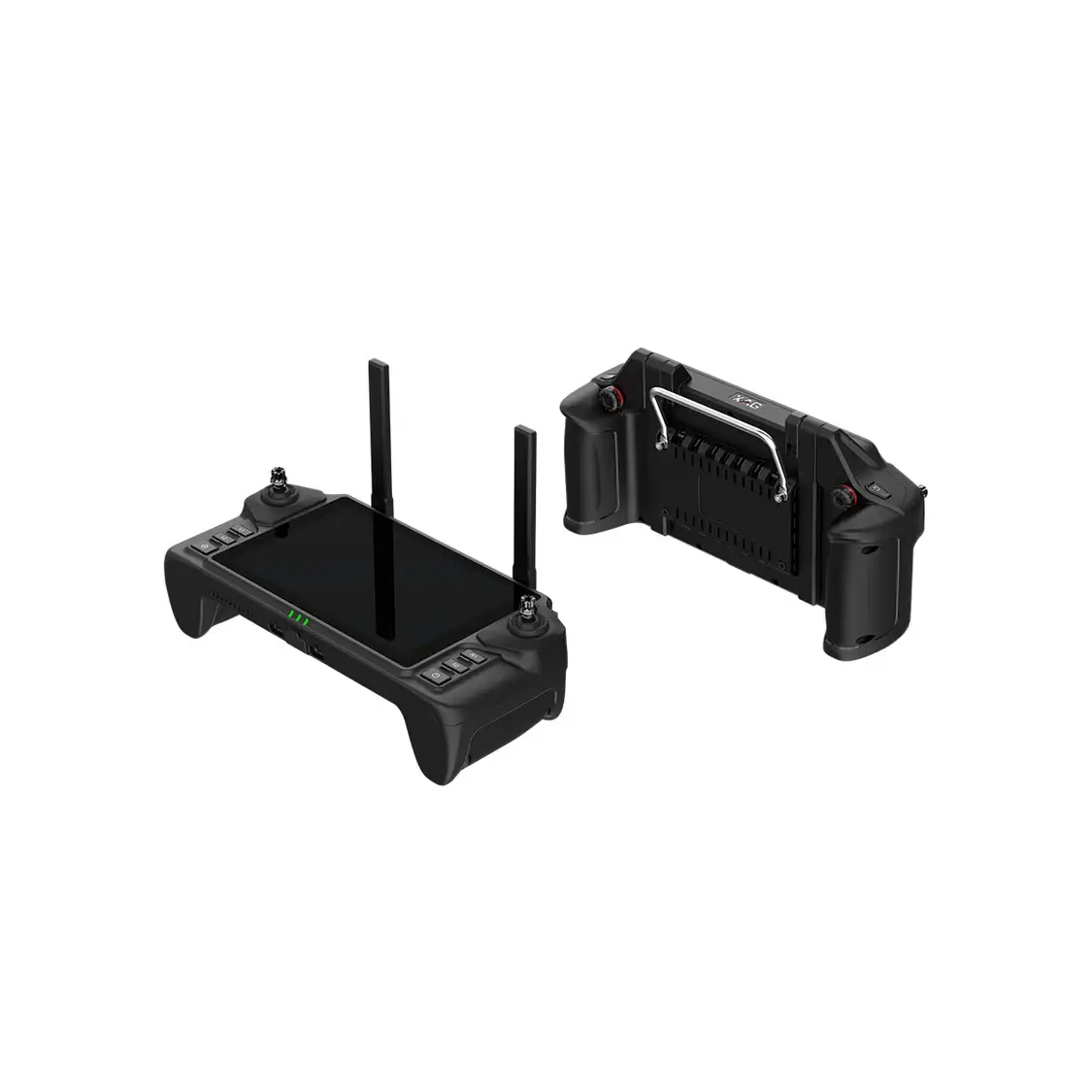

The XAG SRC5 Smart Remote Controller is the primary handheld control interface for the XAG P150 Max Agricultural Drone.
Designed for professional field operations, the SRC5 combines dual physical joysticks with a large 7.02-inch high-brightness touchscreen, giving operators direct access to aircraft telemetry, mission planning, autonomous operations, field maps and real-time FPV video.
The Android-based controller features a 1920 × 1200 display, 1200-nit brightness and integrated XLink communication. XAG states that image transmission can reach up to approximately 2 km in open, unobstructed environments, subject to regional regulations and operating conditions.
The SRC5 works with XAG One software to support autonomous spraying, spreading, field mapping and other P150 Max workflows.
Technical specifications
Specification Details
Model M3SRC5AH
Dimensions 260 × 140 × 89 mm
Weight Approx. 1.2 kg
Operating System Android
Screen 7.02 in
Resolution 1920 × 1200
Brightness 1200 cd/m²
Refresh Rate 60 fps
Battery Capacity 20,000 mAh / 3.65 V
Maximum Transmission Up to 2,000 m FCC/SRRC
Operating Temperature -10°C to 40°C
1 × XAG SRC5 Smart Remote Controller
