Before first flight, please perform a comprehensive inspection of the UAS to ensure that all components meet the following requirements. A complete UAS consists of two parts: the aircraft and the RC. The relevant requirements and explanations are as follows: PDF p. 16
Aircraft Components And Payload
PDF p. 16Please be noted that a complete aircraft includes the aircraft body, gimbal camera, propellers, and the battery. Any damage or missing of these components may result in a malfunction. PDF p. 16

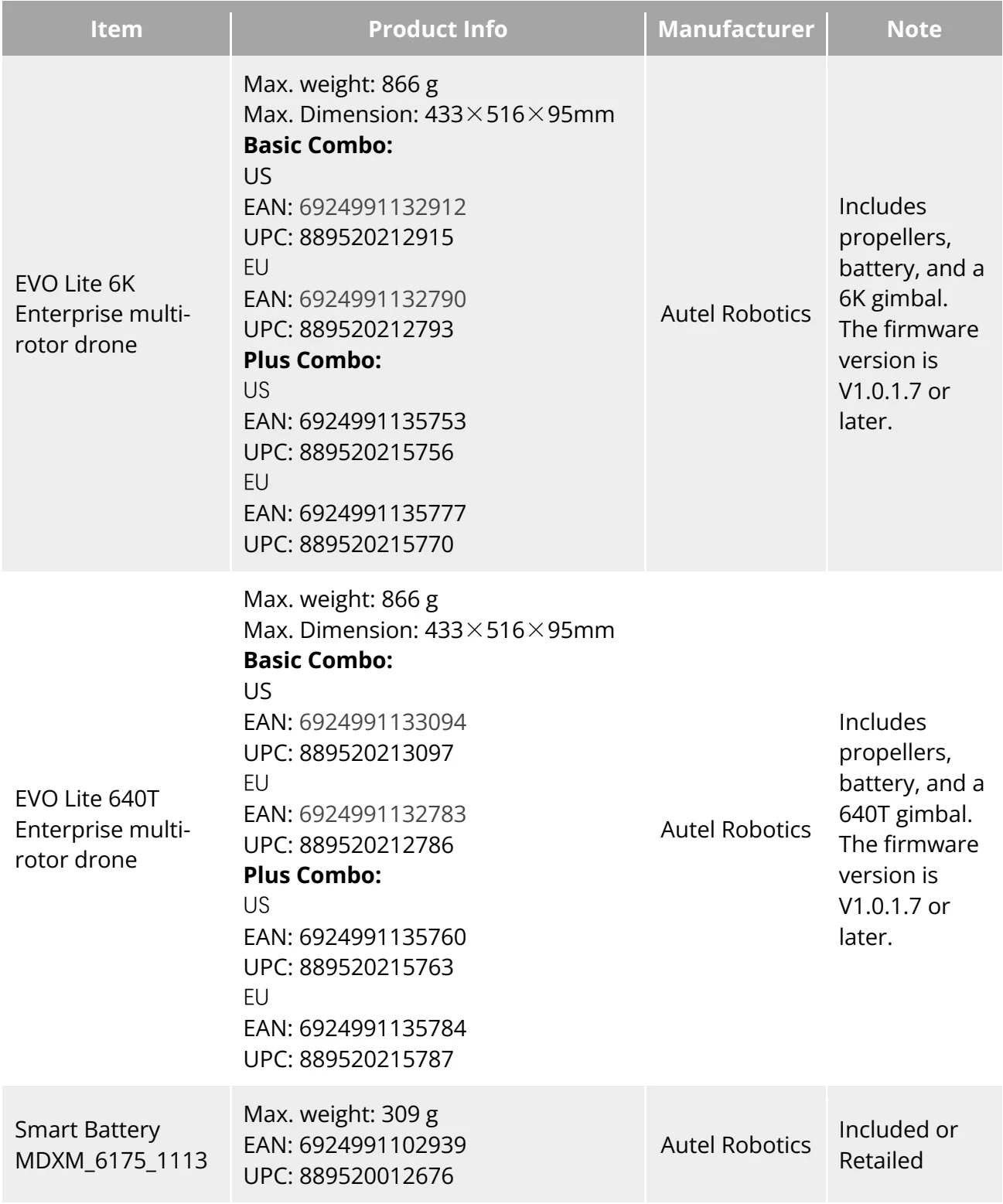

| Item | Product Info | Manufacturer | Note |
| EVO Lite 6K Enterprise multi-rotor drone | Max. weight: 866 gMax. Dimension: 433 \times 516 \times 95mmBasic Combo:USEAN: 6924991132912UPC: 889520212915EUEN: 6924991132790UPC: 889520212793Plus Combo:USEAN: 6924991135753UPC: 889520215756EUEN: 6924991135777UPC: 889520215770 | Autel Robotics | Includespropellers,battery, and a6K gimbal.The firmwareversion isV1.0.1.7 orlater. |
| EVO Lite 640T Enterprise multi-rotor drone | Max. weight: 866 gMax. Dimension: 433 \times 516 \times 95mmBasic Combo:USEAN: 6924991133094UPC: 889520213097EUEN: 6924991132783UPC: 889520212786Plus Combo:USEAN: 6924991135760UPC: 889520215763EUEN: 6924991135784UPC: 889520215787 | Autel Robotics | Includespropellers,battery, and a640T gimbal.The firmwareversion isV1.0.1.7 orlater. |
| Smart Battery MDXM_6175_1113 | Max. weight: 309 gEAN: 6924991102939UPC: 889520012676 | Autel Robotics | Included orRetailed |
View the original table / diagram

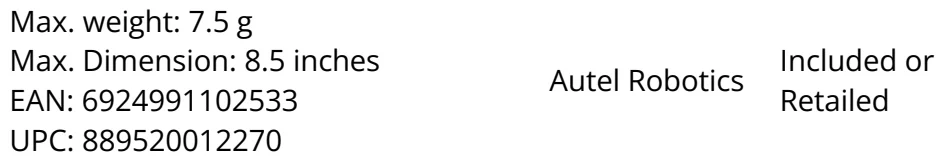

CW/CCW Propeller PDF p. 17
| Max. weight: 7.5 g | ||
| Max. Dimension: 8.5 inches | Autel Robotics | Included or Retailed |
| EAN: 6924991102533 | ||
| UPC: 889520012270 |
View the original table / diagram
Remote Controller Components & The App
PDF p. 17A complete RC includes the controller body (equipped with functional buttons), joysticks, and an antenna. Any damage or missing of these components may result in a malfunction. The Autel Enterprise, serving as the flight application software that controls the aircraft, should be maintained to ensure comprehensive control over the UAS. PDF p. 17

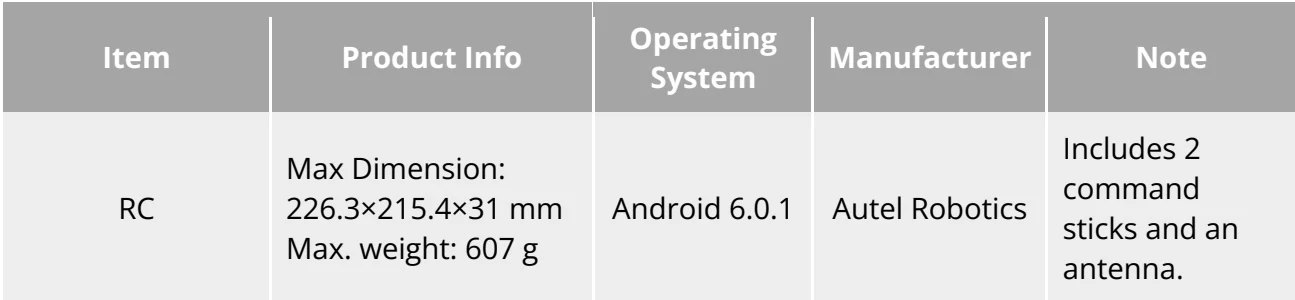

| Item | Product Info | Operating System | Manufacturer | Note |
| RC | Max Dimension: 226.3×215.4×31mm Max. weight: 607 g | Android6.0.1 | Autel Robotics | Includes 2 command sticks and an antenna. |
View the original table / diagram

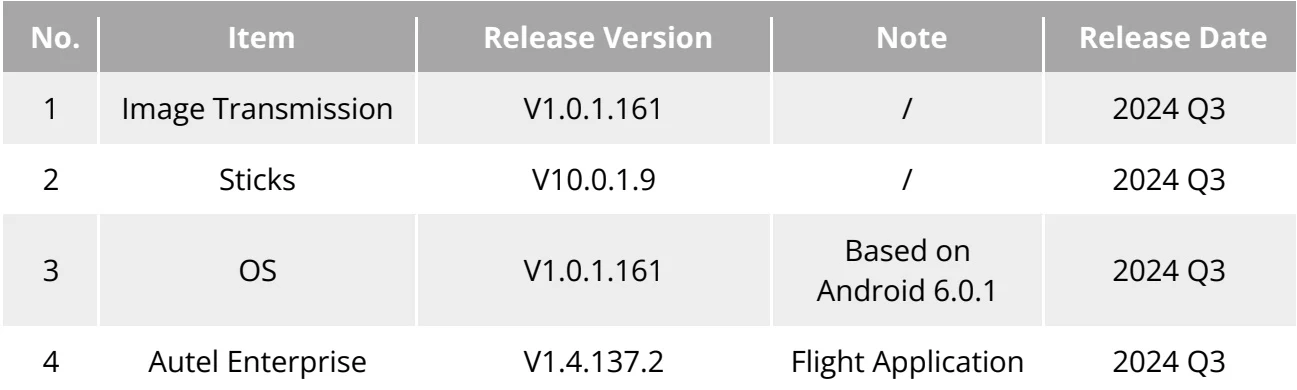

| No. | Item | Release Version | Note | Release Date |
| 1 | Image Transmission | V1.0.1.161 | / | 2024 Q3 |
| 2 | Sticks | V10.0.1.9 | / | 2024 Q3 |
| 3 | OS | V1.0.1.161 | Based on Android 6.0.1 | 2024 Q3 |
| 4 | Autel Enterprise | V1.4.137.2 | Flight Application | 2024 Q3 |
View the original table / diagram
When there's any prompt for updates, please follow the instructions to update accordingly to address any issues and to enjoy the new features. Users also have the option to temporarily pause updates; however, this won't affect the existing functions. PDF p. 18

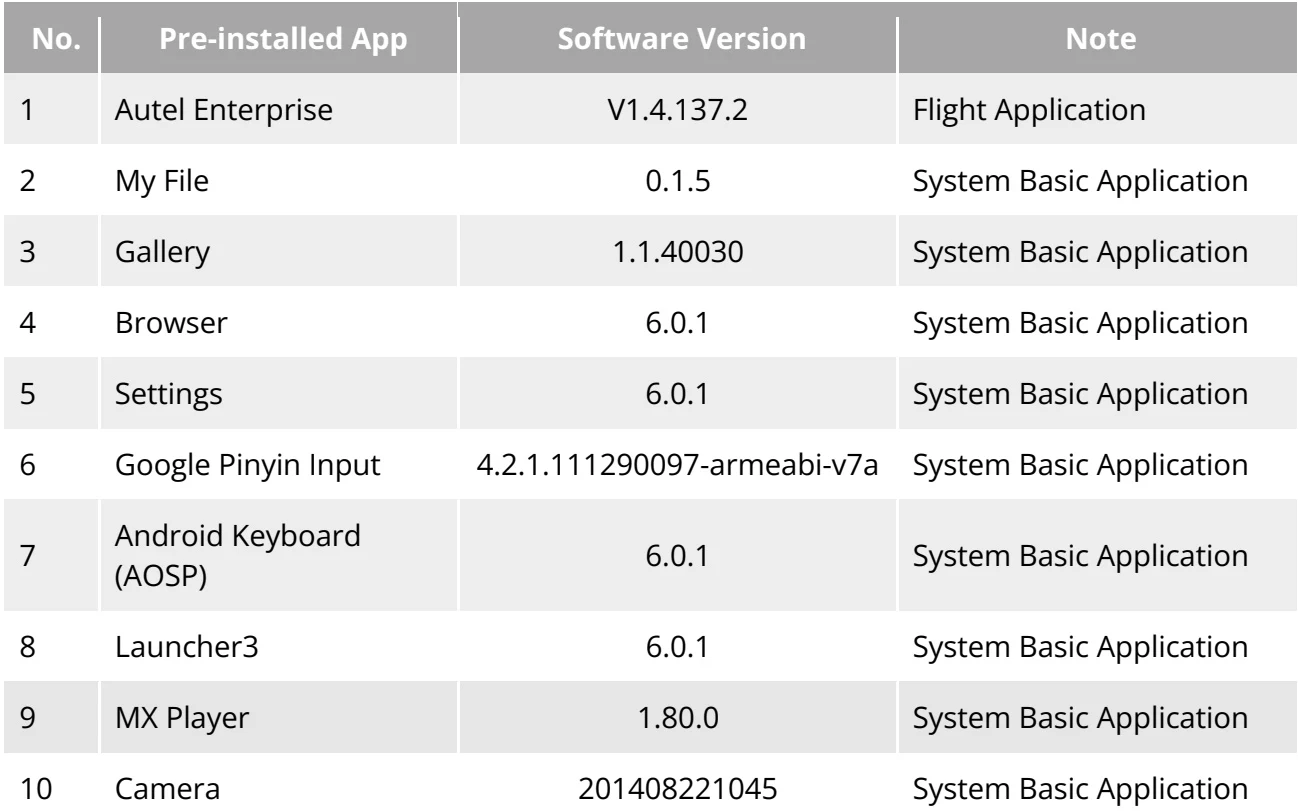

| No. | Pre-installed App | Software Version | Note |
| 1 | Autel Enterprise | V1.4.137.2 | Flight Application |
| 2 | My File | 0.1.5 | System Basic Application |
| 3 | Gallery | 1.1.40030 | System Basic Application |
| 4 | Browser | 6.0.1 | System Basic Application |
| 5 | Settings | 6.0.1 | System Basic Application |
| 6 | Google Pinyin Input | 4.2.1.111290097-armeabi-v7a | System Basic Application |
| 7 | Android Keyboard (AOSP) | 6.0.1 | System Basic Application |
| 8 | Launcher3 | 6.0.1 | System Basic Application |
| 9 | MX Player | 1.80.0 | System Basic Application |
| 10 | Camera | 201408221045 | System Basic Application |
View the original table / diagram
