A.2.2 EVO Lite 640T Enterprise Gimbal Camera

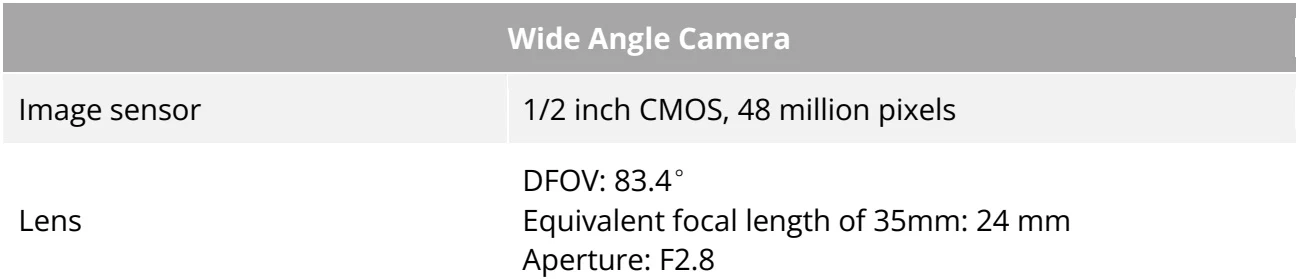

PDF p. 150| Wide AngleCamera | |
| Image sensor | 1/2inchCMOS, 48million pixels |
| Lens | DFOV: 83.4° Equivalentfocal lengthof 35mm:24mm Aperture: F2.8 |
View the original table / diagram

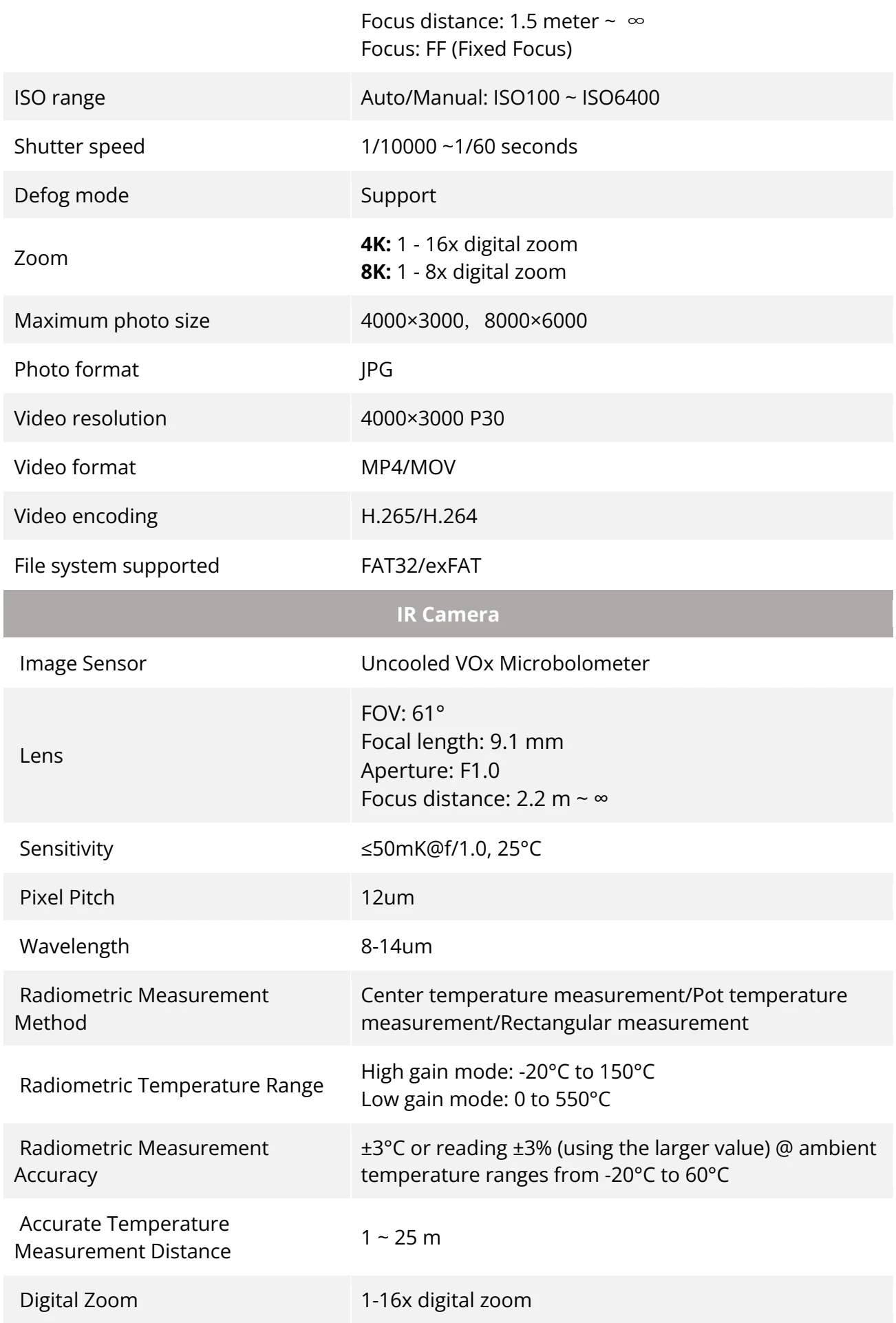

| Focus distance: 1.5 meter ~ ∞Focus: FF (Fixed Focus) | |
| ISO range | Auto/Manual: ISO100 ~ ISO6400 |
| Shutter speed | 1/10000 ~1/60 seconds |
| Defog mode | Support |
| Zoom | 4K: 1 - 16x digital zoom8K: 1 - 8x digital zoom |
| Maximum photo size | 4000×3000, 8000×6000 |
| Photo format | JPG |
| Video resolution | 4000×3000 P30 |
| Video format | MP4/MOV |
| Video encoding | H.265/H.264 |
| File system supported | FAT32/exFAT |
| IR Camera | |
| Image Sensor | Uncooled VOx Microbolometer |
| Lens | FOV: 61°Focal length: 9.1 mmAperture: F1.0Focus distance: 2.2 m ~ ∞ |
| Sensitivity | ≤50mK@f/1.0, 25°C |
| Pixel Pitch | 12um |
| Wavelength | 8-14um |
| Radiometric Measurement Method | Center temperature measurement/Pot temperature measurement/Rectangular measurement |
| Radiometric Temperature Range | High gain mode: -20°C to 150°CLow gain mode: 0 to 550°C |
| Radiometric Measurement Accuracy | ±3°C or reading ±3% (using the larger value) @ ambient temperature ranges from -20°C to 60°C |
| Accurate Temperature Measurement Distance | 1 ~ 25 m |
| Digital Zoom | 1-16x digital zoom |
View the original table / diagram

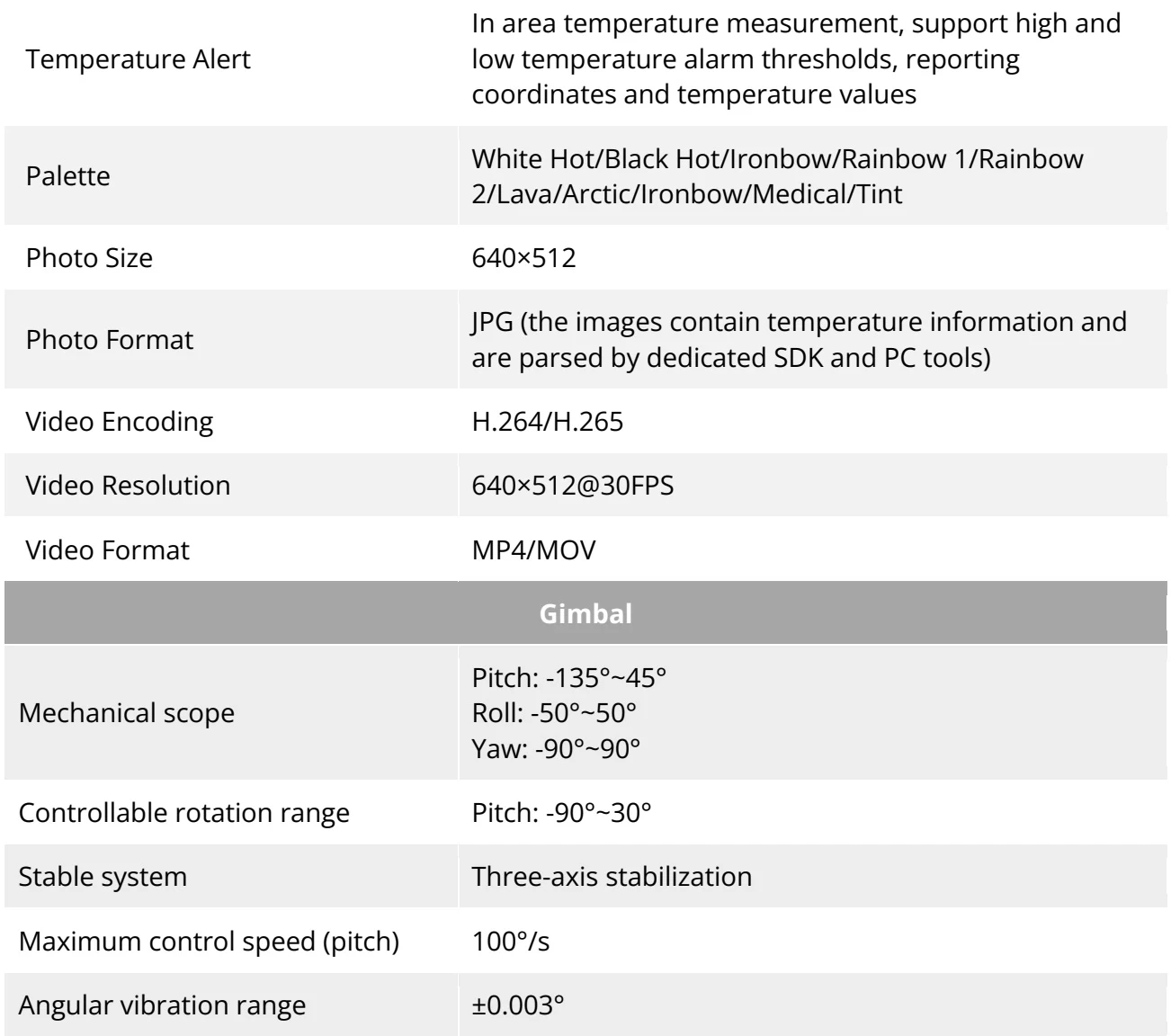

| Temperature Alert | In area temperature measurement, support high and low temperature alarm thresholds, reporting coordinates and temperature values |
| Palette | White Hot/Black Hot/Ironbow/Rainbow 1/Rainbow 2/Lava/Arctic/Ironbow/Medical/Tint |
| Photo Size | 640×512 |
| Photo Format | JPG (the images contain temperature information and are parsed by dedicated SDK and PC tools) |
| Video Encoding | H.264/H.265 |
| Video Resolution | 640×512@30FPS |
| Video Format | MP4/MOV |
| Gimbal | |
| Mechanical scope | Pitch: -135°~45°Roll: -50°~50°Yaw: -90°~90° |
| Controllable rotation range | Pitch: -90°~30° |
| Stable system | Three-axis stabilization |
| Maximum control speed (pitch) | 100°/s |
| Angular vibration range | ±0.003° |
View the original table / diagram

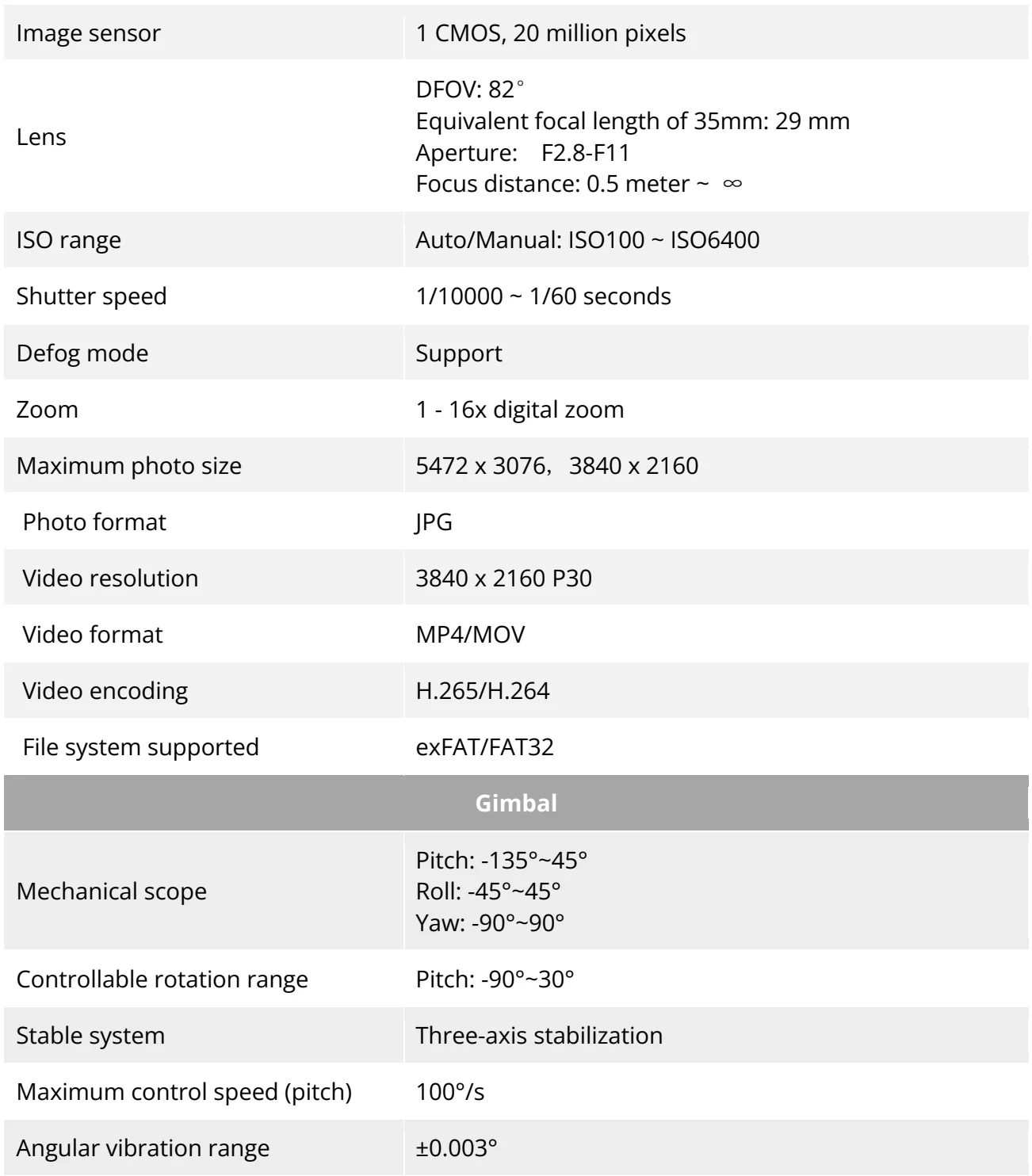

EVO Lite 6K Enterprise camera specifications
A.2.1 EVO Lite 6K Enterprise Aircraft Gimbal Camera
PDF p. 149| Image sensor | 1 CMOS, 20 million pixels |
| Lens | DFOV: 82°Equivalent focal length of 35mm: 29 mmAperture: F2.8-F11Focus distance: 0.5 meter ~∞ |
| ISO range | Auto/Manual: ISO100 ~ ISO6400 |
| Shutter speed | 1/10000 ~ 1/60 seconds |
| Defog mode | Support |
| Zoom | 1 - 16x digital zoom |
| Maximum photo size | 5472 x 3076, 3840 x 2160 |
| Photo format | JPG |
| Video resolution | 3840 x 2160 P30 |
| Video format | MP4/MOV |
| Video encoding | H.265/H.264 |
| File system supported | exFAT/FAT32 |
| Gimbal | |
| Mechanical scope | Pitch: -135°~45°Roll: -45°~45°Yaw: -90°~90° |
| Controllable rotation range | Pitch: -90°~30° |
| Stable system | Three-axis stabilization |
| Maximum control speed (pitch) | 100°/s |
| Angular vibration range | ±0.003° |
