EVO Lite 640T Enterprise v1.0.2

4.5 Checking the Battery Level of the Remote Controller

Remote Controller · Source PDF pages 72–73

EVO Lite 640T Enterprise · SE V2 controller · v1.0.2

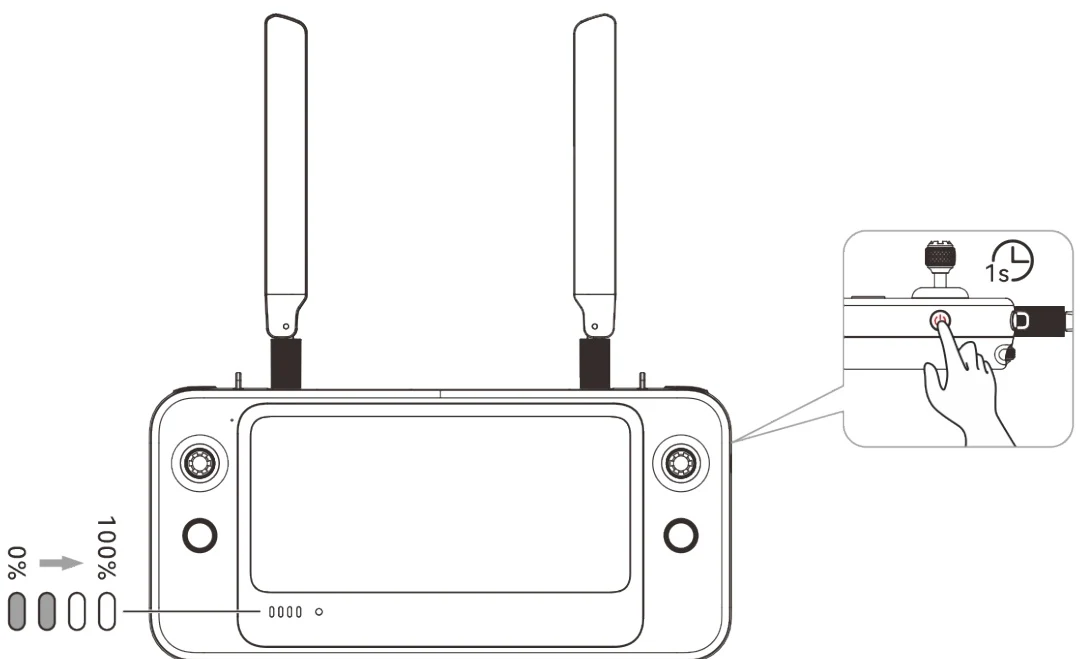

When the remote controller is off, short press the power button of the remote controller for 1 second, and the battery level indicator will display the battery level of the remote controller. PDF p. 72

Checking the Battery Level of the Remote Controller
Checking the Battery Level of the Remote Controller PDF p. 73

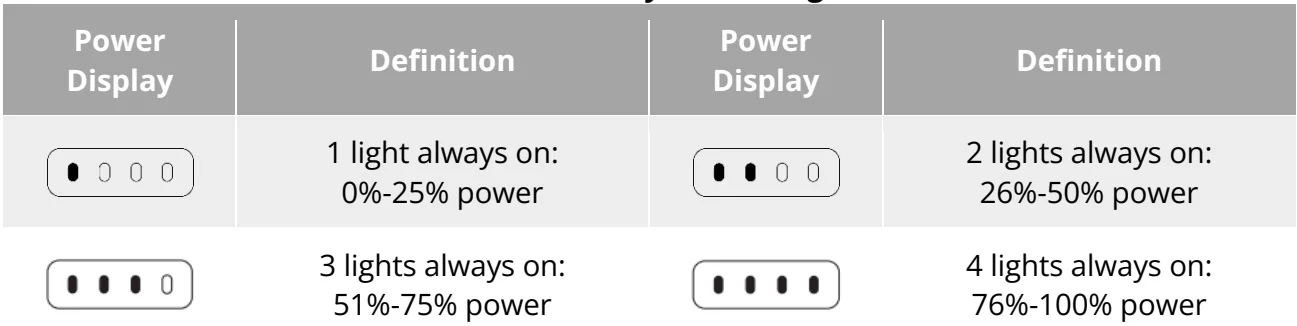

Table 4-6 Battery Remaining PDF p. 73
DPioswpleary Definition DPioswplearyDefinition
1 light always on:2 lights always on:
0%-25% power26%-50% power
3 lights always on:4 lights always on:
51%-75% power76%-100% power
View the original table / diagramOriginal Table 4-6 Battery Remaining

Technical content and illustrations: Autel Robotics. Digital navigation and presentation: SkyFlow.

Source: EVO Lite Enterprise Series Aircraft User Manual v1.0.2. Physical PDF pages 72–73. Open source document
