EVO Lite 640T Enterprise · SE V2 controller · v1.0.2

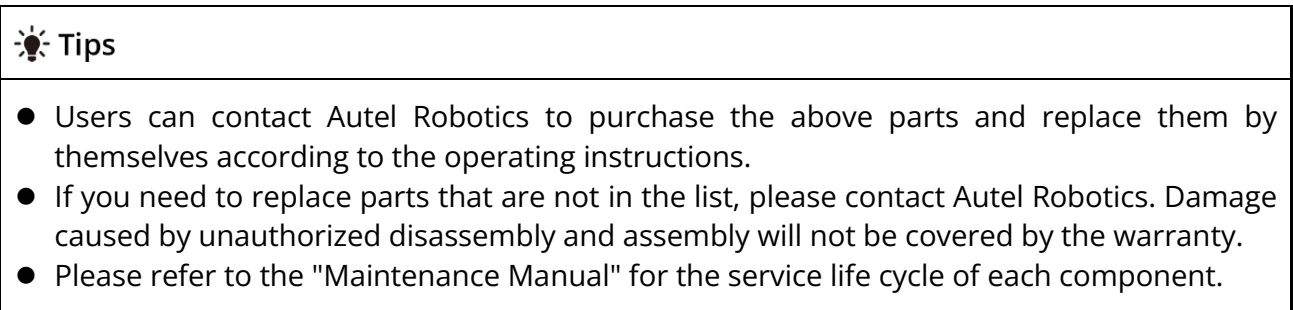

To ensure that the aircraft maintains optimal performance, all parts of the aircraft need to be maintained regularly. For details, please refer to the Maintenance Manual. If you have any questions, please contact Autel Robotics. PDF p. 142

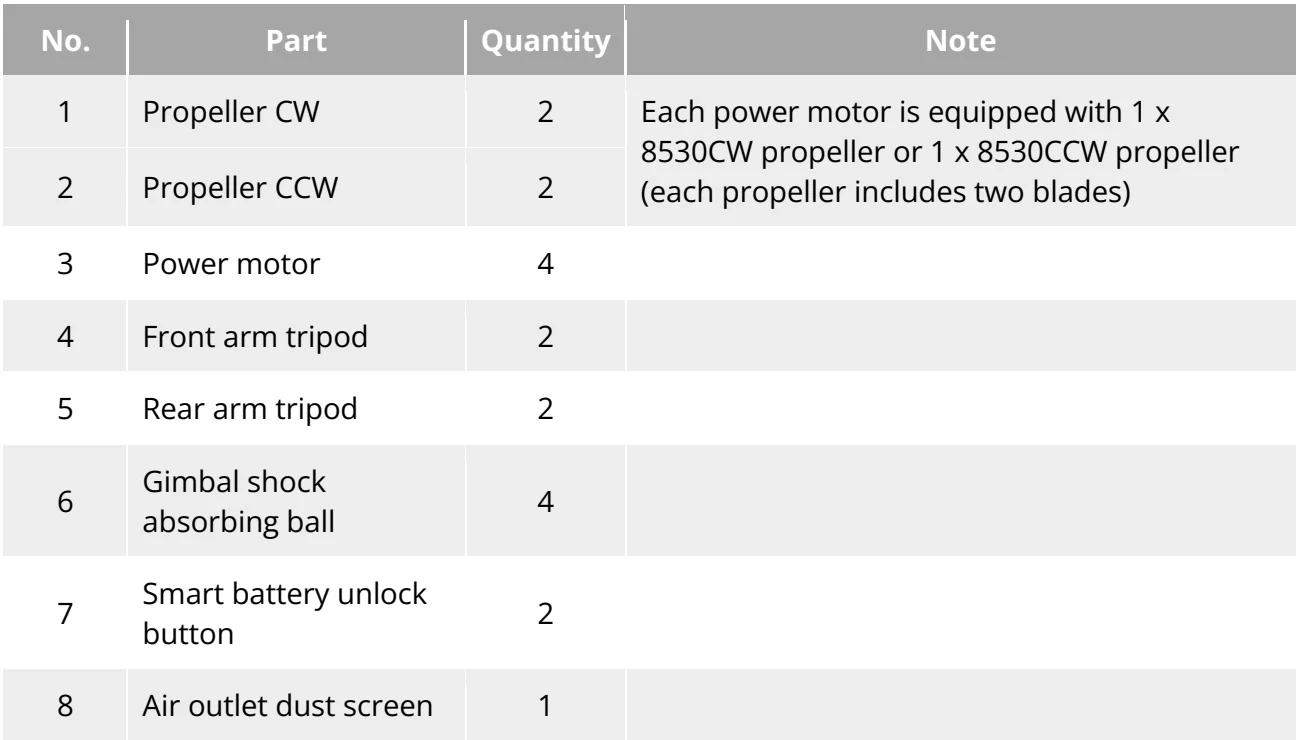

| No. | Part | Quantity | Note |
| 1 | Propeller CW | 2 | Each power motor is equipped with 1 x 8530CW propeller or 1 x 8530CCW propeller (each propeller includes two blades) |
| 2 | Propeller CCW | 2 | |
| 3 | Power motor | 4 | |
| 4 | Front arm tripod | 2 | |
| 5 | Rear arm tripod | 2 | |
| 6 | Gimbal shock absorbing ball | 4 | |
| 7 | Smart battery unlock button | 2 | |
| 8 | Air outlet dust screen | 1 |
View the original table / diagram

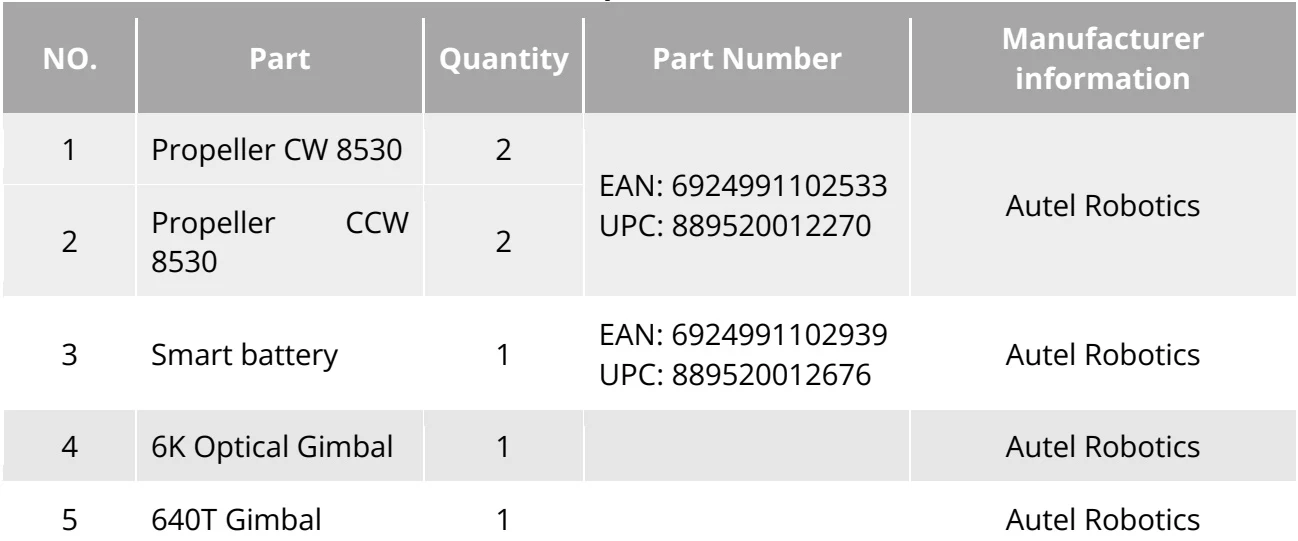

| NO. | Part | Quantity | Part Number | Manufacturer information |
| 1 | Propeller CW 8530 | 2 | EAN: 6924991102533UPC: 889520012270 | Autel Robotics |
| 2 | Propeller CCW 8530 | 2 | ||
| 3 | Smart battery | 1 | EAN: 6924991102939UPC: 889520012676 | Autel Robotics |
| 4 | 6K Optical Gimbal | 1 | Autel Robotics | |
| 5 | 640T Gimbal | 1 | Autel Robotics |
View the original table / diagram
