EVO Lite 640T Enterprise v1.0.2

3.10 Noise Description

Aircraft · Source PDF pages 61

EVO Lite 640T Enterprise · SE V2 controller · v1.0.2

When the EVO Lite Enterprise Series multi-rotor drone hovers, it generates noise with an intensity of 69dB (at a distance of 0.5 meters from the aircraft). Users should familiarize themselves with local noise pollution prevention and control regulations and set a reasonable flight altitude or safety distance to ensure no interference with other individuals, groups, or organizations. PDF p. 61

A-weighted sound power level

PDF p. 61

The EVO Lite Enterprise Series multi-rotor drone has undergone sound power testing by relevant qualified third-party testing agencies, and the results comply with the regulations of the European Union regarding unmanned aerial vehicles. PDF p. 61

A-Weighted Sound Power Level of EVO Lite Enterprise Series multi-rotor drone
A-Weighted Sound Power Level of EVO Lite Enterprise Series multi-rotor drone PDF p. 61

A-weighted sound pressure level

PDF p. 61

Measurement results for the EVO Lite Enterprise Series multi-rotor drone, in accordance with the requirements of GB 42590-2023 in China’s Mainland, are provided below: PDF p. 61

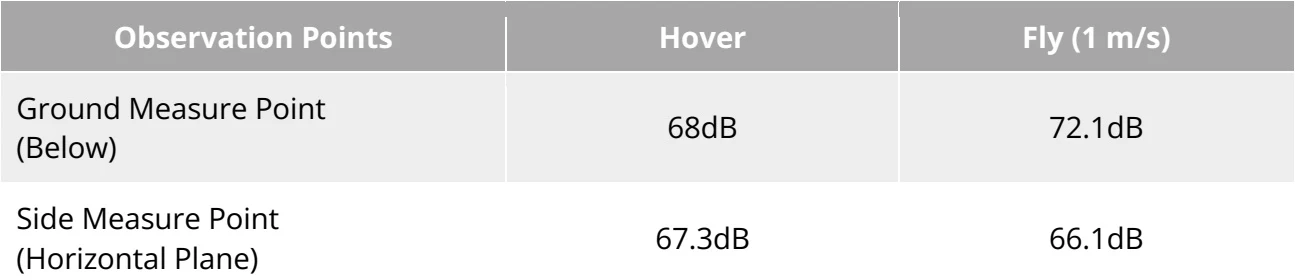

Table 3-12 Noise Measurements Results (Normalized to 1 m from the Aircraft) PDF p. 61
Observation PointsHoverFly (1 m/s)
Ground Measure Point (Below)68dB72.1dB
Side Measure Point (Horizontal Plane)67.3dB66.1dB
View the original table / diagramOriginal Table 3-12 Noise Measurements Results (Normalized to 1 m from the Aircraft)

Note: The measurement environment is an outdoor cement ground. PDF p. 61

Technical content and illustrations: Autel Robotics. Digital navigation and presentation: SkyFlow.

Source: EVO Lite Enterprise Series Aircraft User Manual v1.0.2. Physical PDF pages 61–61. Open source document
