The gimbal camera of the EVO Lite 6K Enterprise Aircraft is equipped with a 1-inch CMOS image sensor, capable of capturing stable 6K high-definition videos and 20 million pixels photos. PDF p. 53
The gimbal camera of the EVO Lite 640T Enterprise Aircraft is equipped with a 1/2-inch CMOS image sensor, capable of capturing stable 48 million pixels photos and infrared photos of 640 x 512 resolution. PDF p. 53

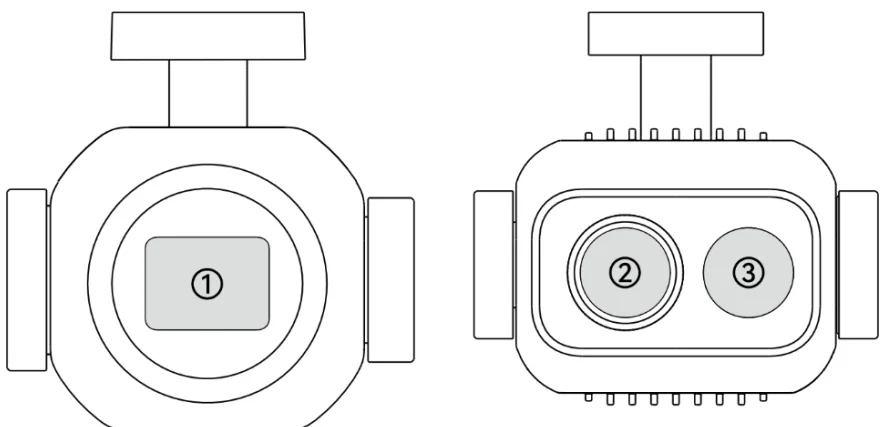

3.6.1 Camera differences
PDF p. 54

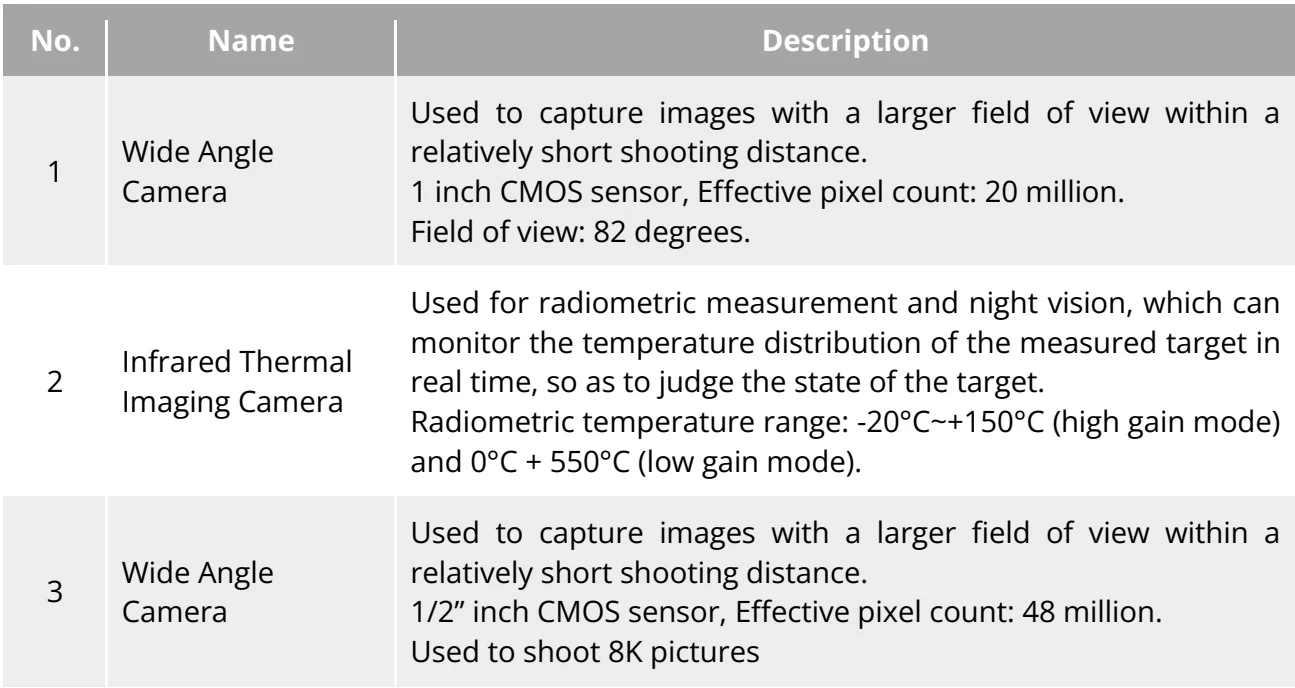

| No. | Name | Description |
| 1 | Wide Angle Camera | Used to capture images with a larger field of view within a relatively short shooting distance.1 inch CMOS sensor, Effective pixel count: 20 million.Field of view: 82 degrees. |
| 2 | Infrared Thermal Imaging Camera | Used for radiometric measurement and night vision, which can monitor the temperature distribution of the measured target in real time, so as to judge the state of the target.Radiometric temperature range: -20°C~+150°C (high gain mode) and 0°C + 550°C (low gain mode). |
| 3 | Wide Angle Camera | Used to capture images with a larger field of view within a relatively short shooting distance.1/2" inch CMOS sensor, Effective pixel count: 48 million.Used to shoot 8K pictures |
View the original table / diagram
3.6.2 Camera operations
PDF p. 54RC Control
PDF p. 54Right dial wheel: Used to adjust the zoom factor of the selected camera. Turn left to reduce the zoom factor, and turn right to increase the zoom factor. PDF p. 54
Video recording/Shooting button: Short press the button to shoot a picture; press and hold this button to start/end recording video. When recording video, you may press the button to shooting a picture. PDF p. 55
