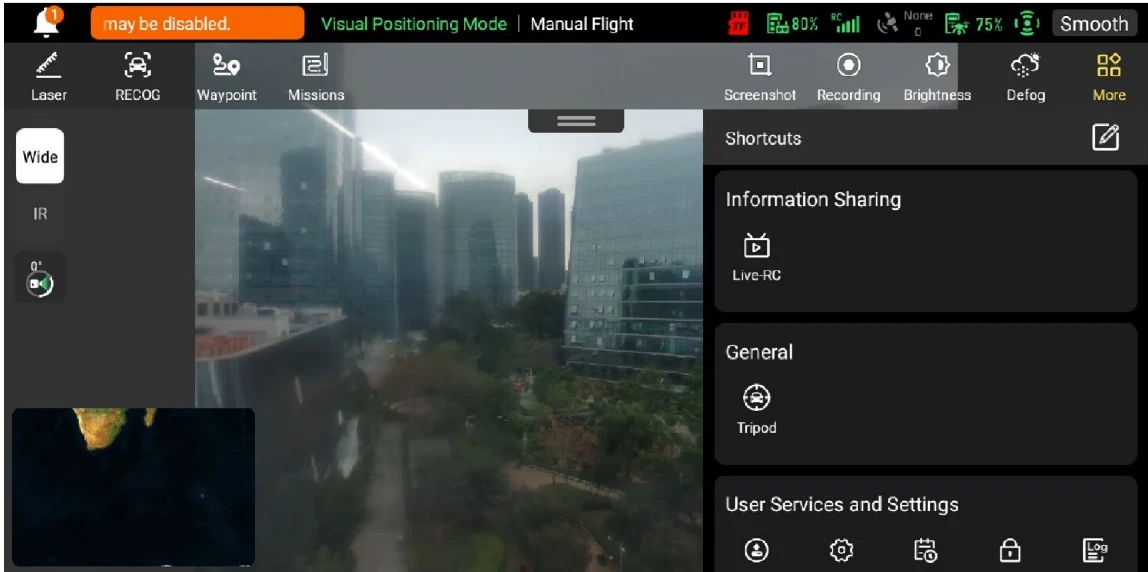

The toolbar is displayed at the bottom of the system status notification bar of the flight application, which allows you to quickly activate certain functions. PDF p. 102

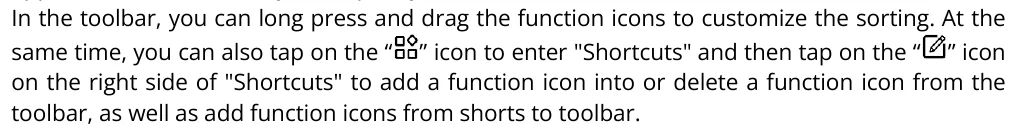

In the toolbar, you can long press and drag the function icons to customize the sorting. At the same time, you can also tap on the illustrated icon to enter "Shortcuts" and then tap on the illustrated icon on the right side of "Shortcuts" to add a function icon into or delete a function icon from the toolbar, as well as add function icons from shorts to toolbar. PDF p. 102

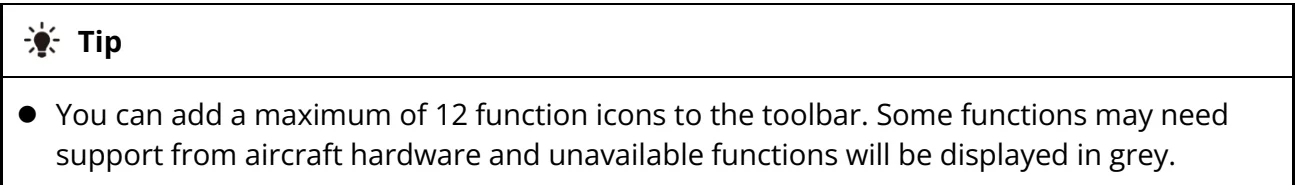

Original instruction with its control symbol

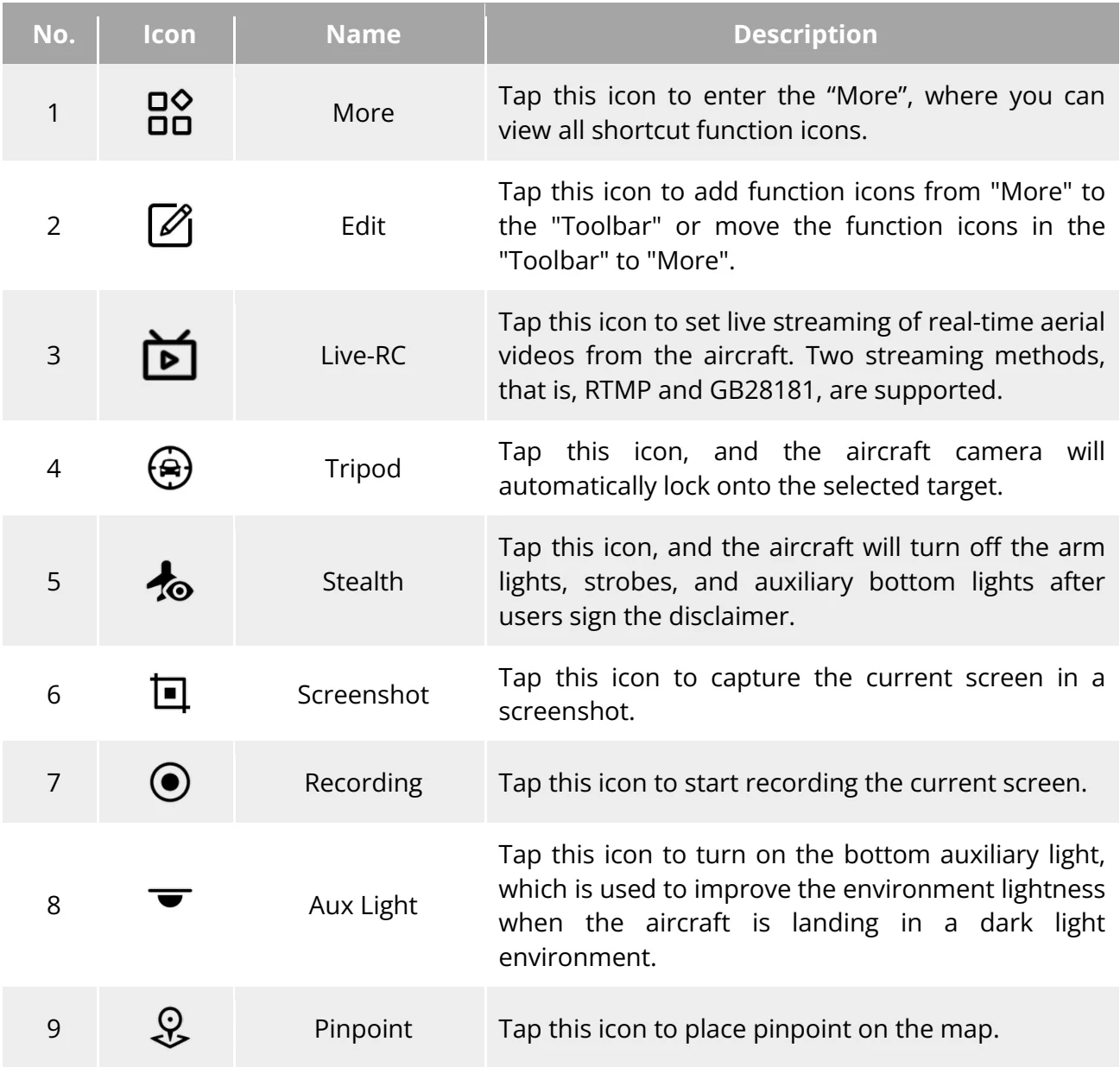

Original Table 6-4 Toolbar Details — Table 6-4 Toolbar Details PDF p. 103

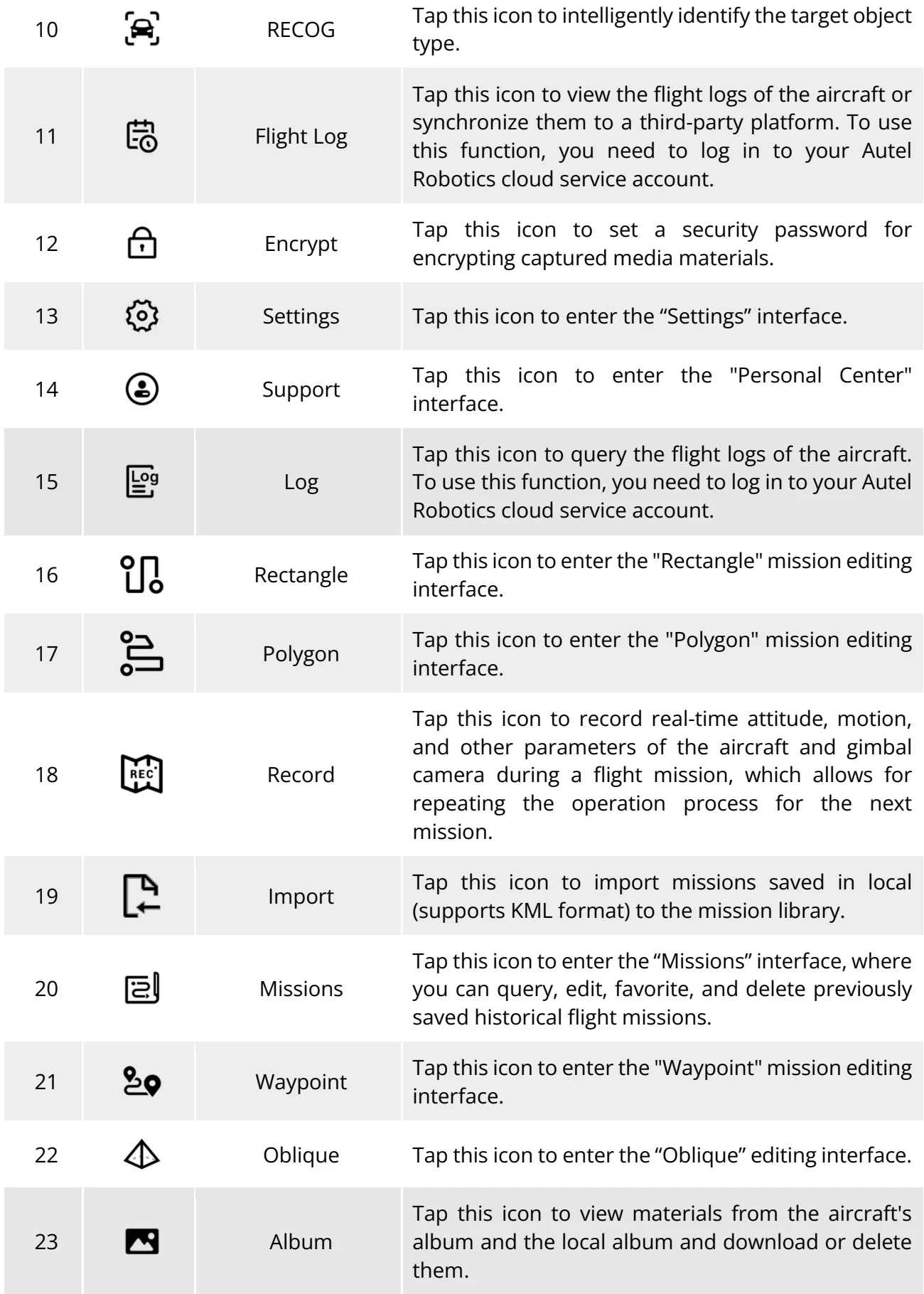

Original Manufacturer reference table — Manufacturer reference table PDF p. 104

No.	Icon	Name	Description
1		More	Tap this icon to enter the "More", where you can view all shortcut function icons.
2		Edit	Tap this icon to add function icons from "More" to the "Toolbar" or move the function icons in the "Toolbar" to "More".
3		Live-RC	Tap this icon to set live streaming of real-time aerial videos from the aircraft. Two streaming methods, that is, RTMP and GB28181, are supported.
4		Tripod	Tap this icon, and the aircraft camera will automatically lock onto the selected target.
5		Stealth	Tap this icon, and the aircraft will turn off the arm lights, strobes, and auxiliary bottom lights after users sign the disclaimer.
6		Screenshot	Tap this icon to capture the current screen in a screenshot.
7		Recording	Tap this icon to start recording the current screen.
8		Aux Light	Tap this icon to turn on the bottom auxiliary light, which is used to improve the environment lightness when the aircraft is landing in a dark light environment.
9		Pinpoint	Tap this icon to place pinpoint on the map.

10	RECOG	Tap this icon to intelligently identify the target object type.
11	Flight Log	Tap this icon to view the flight logs of the aircraft or synchronize them to a third-party platform. To use this function, you need to log in to your Autel Robotics cloud service account.
12	Encrypt	Tap this icon to set a security password for encrypting captured media materials.
13	Settings	Tap this icon to enter the "Settings" interface.
14	Support	Tap this icon to enter the "Personal Center" interface.
15	Log	Tap this icon to query the flight logs of the aircraft. To use this function, you need to log in to your Autel Robotics cloud service account.
16	Rectangle	Tap this icon to enter the "Rectangle" mission editing interface.
17	Polygon	Tap this icon to enter the "Polygon" mission editing interface.
18	Record	Tap this icon to record real-time attitude, motion, and other parameters of the aircraft and gimbal camera during a flight mission, which allows for repeating the operation process for the next mission.
19	Import	Tap this icon to import missions saved in local (supports KML format) to the mission library.
20	Missions	Tap this icon to enter the "Missions" interface, where you can query, edit, favorite, and delete previously saved historical flight missions.
21	Waypoint	Tap this icon to enter the "Waypoint" mission editing interface.
22	Oblique	Tap this icon to enter the "Oblique" editing interface.
23	Album	Tap this icon to view materials from the aircraft's album and the local album and download or delete them.

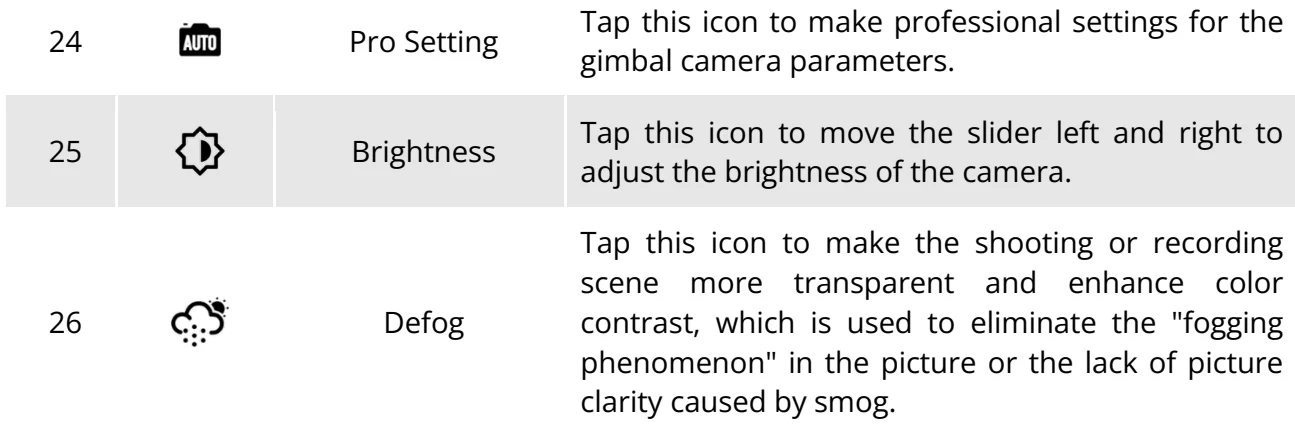

24	Pro Setting	Tap this icon to make professional settings for the gimbal camera parameters.
